Research group : Priv.Doz. Dr. Thomas Nawroth

ATP-synthase


ATP-synthase and its catalytic head, F1ATPase

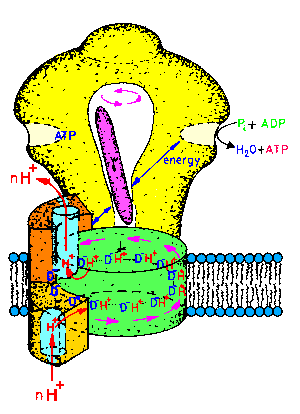

Fig.1: ATP-synthase is an intrinsic membrane protein, consisting of two subcomplexes of various protein-subunits: The membrane integral Fo-part is a proton pump, whereas the hollow headpiece, called F1ATPase bears the 3 catalytic centers. The reversible system converts energy of the proton translocation to the synthesis or hydrolysis of ATP (30 kJ/mole ATP at pH7). The intramolecular energy transfer is maintained by a series of molecular motions. The rotation of the central gamma-subunit (pink) connects the events inside the F1-head with those in the Fo-complex (picture from T20, structure of the Fo-part as suggested by W. Junge).

ATP-synthase is a large membrane protein, which plays a key role in the energy metabolism of all known organisms, i.e. it is the terminal protein in a network or chain of membrane proteins of the bioenergetic system. The enzyme couples the vectorial proton transport accross a membrane with the synthesis or cleavage of the energy rich compound ATP (AdenosineTriPhosphate) in a reversible reaction. As depicted in Fig.1, ATP-synthase consists of two subcomplexes of several (>22) protein subunits, named Fo-part (membrane integral base-piece) and F1ATPase (head). The two active areas of the proton pump in Fo and of the chemical catalysis in F1 are apart about 10nm, but energetically coupled. This distance is much too large for any chemical coupling. Thus it was suggested already in the early 80's that the coupling occurs in a structure-mechanical way, i.e. by conformational coupling. Biochemistry yielded indirect evidence for this suggestion by estimation of the binding constants of nucleotides (ATP, ADP) to catalytic and non-catalytic nucleotide sites. As depicted in Fig.2 the F1ATPase-head contains 3 catalytic nucleotide sites (easyly exchangable) and three non-catalytic sites (under steady-state conditions non-exchangable nucleotides). Paul Boyer concluded from the fact that the nucleotide binding sites occured variable in strength and accessibility during the reaction (open, loose, tight states in Fig.2), observed in an elegant way by time resolved isotope exchange experiments, that each active center undergoes a sequence of structural interconversions while it is cooperatively coupled to one or two other active centers, which are in the opposite structural state and reaction. 1997 he got the Nobel award for this "binding change mechanism" together with J.E.Walker, who had solved the structure of a resting inhibited modification of the F1ATPase by static X-ray crystallography ([1994] Nature 370, 621-628). Nevertheless the reaction mechanism remained unclear, especially the energetic coupling between the three alpha-beta heterodimers inside the F1ATPase and the coupling between Fo- and F1-part. The reason for this was probably the lack of time resolution in most experiments.
The crystallography showed a cleft between the central gamma-subunit and the hollow F1ATPase-head, which could allow a motion of this central axis, possibly a rotation (the subunit is shown in pink in Fig.1). 1997 this suggestion of Walker was proved by Noji et al. (Nature 386, 299-302) by video-microscopy of immobilized F1ATPase with a fluorescence labeled gamma-subunit. 1998 Oster et al. presented a theoretical calculation of molecular motions in F1ATPase obtained with a modified RASMOL program run based on Walker's data. These symmetric dislocations of three cooperative domains (out, to the side, in) extrapolated simply the three different states of the three beta-subunits in the static F1ATPase-structure, in a kind of morphing. As symmetric changes do not change the centre of gravity, they should not yield any measurable effect in a spatial avaraging method of structural biology, e.g. X-ray small angle scattering (SAXS). In contrast the time resolved experiments (TR-SAXS)  of the MPSD group started at DESY-HASYLAB (F14, T20, T14) and continued at ELETTRA and ESRF (submitted) showed the transient size changes and subunit structure rearrangements of the working enzyme presented below.

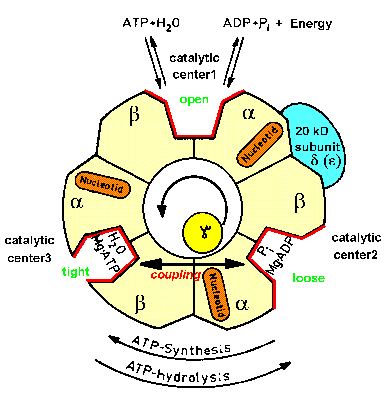

Fig.2: Structure scheme of F1ATPase. The cut through the hollow F1ATPase head shows three pairs of subunits (alpha, beta heterodimers) and the rotating gamma subunit in the center. Each alpha, beta-pair carries one catalytic center (in the cleft) and an additional burried noncatalytic nuceotide center (orange). Only one subunit pair is associated with the delta-subunit (epsilon in Micrococcus luteus), which is part of the proposed "second stalk" structre (from T20, modified).

Since the 60's ATP-synthase was assumed to contain a single connective domain consisting of gamma and small subunits, due to electron microscopy investigations. In the late 90's it came out that obviously a second connection exists, consisting of the upper part of the Fo-subunits b,b' and the F1-subunit delta, which is the epsilon subunit in the aerobic bacterium Micrococcus luteus used by the MPSD group (delta - epsilon exchange in Micrococcus, see F8, F18, F20 and regulation of F1ATPase). Thus an inherent asymmetry should exist in the F1ATPase (see Fig.2). Several groups unsuccessfully searched for this asymmetry, e.g. by labeling and chemical crosslinking (R. Cross et al.), but the results were ambigous. Just the time resolved X-ray scattering experiments presented in the structural film of working ATP-Synthase  indicated a kinetic asymmetry in the working enzyme, which is an evidence of a supercycle of three structural subcycles in the ATP hydrolysis reaction.


Structural film of working ATP-synthase obtained with synchrotron radiation

The film shows transient size changes of working F1ATPase, the catalytic head of ATP-synthase, during the reaction cycle of ATP hydrolysis. The film was obtained by time resolved X-ray small angle scattering (TR-SAXS) of synchronized enzyme-ATP mixtures (aqueous solutions). Thus no 3D-pictures are possible (the scattering of a solution is spatial averaged). Nevertheless size changes and changes of the subunit assembly are estimated directly. The results are interpreted by molecular modelling with an advanced version of our FVM cube method (F10), which allows to include the resolution of the static structure of bovine F1ATPase with X-ray crystallography by J.E. Walker et al. 1994 (Nature 370, 621-628), and the modelling of molecular motions.

Time resolved investigation of working proteins

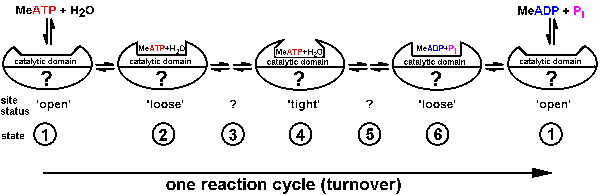

Fig.3: According to Boyer et al. (alternating site mechanism) each of the reaction centers inside ATP-synthase / F1ATPase undergoes a sequence of status changes during the ATP reaction cycle. While the binding of the nucleotide (ATP/ADP changes from loose to tight and again loose, the chemical accessibility of the site (indirect estimate of the structure) varies from open to closed and again open. The structure of the other sites is unknown (?), while beeing highly cooperative in the multisite-reaction (from T20).

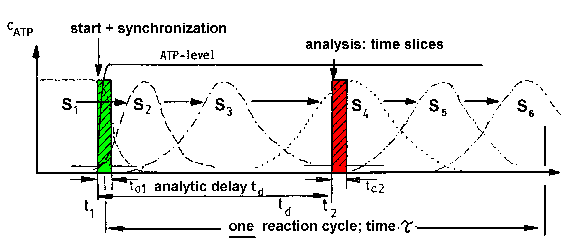

Fig.4: The investigation of the transiently occuring states of the working protein requires the activation, e.g. by substrate (ATP) binding, and analysis with time resolved methods. The time required for the activation (ta1) and analysis (ta2) has to be smaller as the duration of one reaction cycle Tau (= 1/kcat) (from T20).

The observation of events during the reaction cycle of a working enzyme (catalytic protein) requires time resolved experiments. As presented in Fig.3 for the assumed binding change mechanism of F1ATPase / ATP-synthase according to Boyer, a catalytic domain of each molecule of the enzyme passes sequentially through a series of states ((1) to (6), which differ in structure and chemical properties (binding "constants"): The substrate (metal-ATP for F1ATPase) binds to an open conformation (1) of the empty protein-domain; then the ATP is bound loosely to a conformation (2); this converts over a closed conformation of high energy (3) to a tight modification of low energy content, from which the ATP cannot escape; a transition over an intermediate ADP state (5) yields then the conformation (6), where the product (ADP) is loosely bound (exchangable), which dissociates to product to the environment (solution); and the final transition recreates the open conformation of the empty domain (1). In the ATP-synthesis reaction the sequence happens in the opposite direction. The status of each catalytic domains is linked to that of one or two others in a cooperative way, indicated by the quotation mark (?) in Fig.3. The way of coupling depends on the nucleotide concentration, which switches the enzyme over between at least three operational modes: single site, dual site and multi (tri) site catalysis. Due to biochemical experiments, the energy input is required not for the formation of ATP+H2O from ADP+phoshate, but for the structural conversion of tightly bound (not exchangable) ATP to loosely bound (exchangable) ATP. Thus a structural interconversion of the protein and not a chemical reaction is the key of the process.
As depicted in Fig.4, the series of conversions can in principle investigated by time resolved methods of structural biology and biochemical analysis if: i) the enzyme is activated in a short time ta1 and ii) the signal (structure, product) is analyzed in a short time ta2; both intervals have to be much shorter (>10x) as compared with the duration tau of the enzymatic reaction (= 1/kcat). If in a macroscopic sample, i.e. a protein solution or a crystal, the majority of the molecules can be activated in parallel, the system behaves like a single molecule for a limted time, at least for the reaction cycle time tau. In this case the sample is synchronized and shows the state densities S1 to S6, which correspond to the molecular states (conformations) 1 to 6. If the analysis time  is smaller than the life time of the populations beeing in these conformations, the structures can investigated with the methods of structural biology, e.g. time resolved small angle scattering of working proteins. This requires a high flux synchrotron, especially if the reaction cycle has to be investigated in single shot experiments (most common case).


Experimental problems and solutions

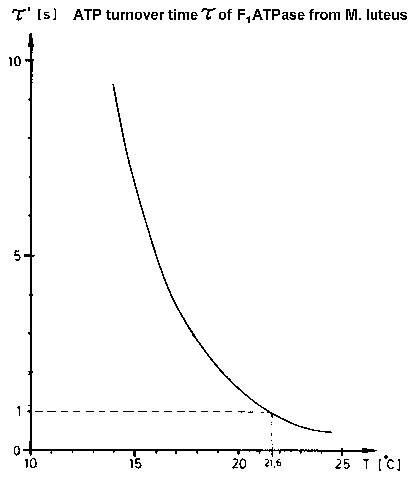

Fig.5: The speed of molecular motions in working F1ATPase can be reduced by cooling (or D2O-inhibition). Due to the remarkable high activation energy for the ATP-hydrolysis of the low temperature modification of complete F1ATPase from Micrococcus luteus F1L (see page: regulation of F1ATPase), the duration of one enzymatic ATP cleavage can be lowered by 3 orders, e.g. from 4 ms at +37C to 20 s at +13C !. (from T20)

At 37C the enzymatic ATP hydrolysis takes 4ms with F1ATPase from Micrococcus luteus. This is too fast for current TR-SAXS experiments at high flux synchrotons with CCD-detectors (read-out dead time (gap) > 100 ms). As shown in Fig.5 the reaction can be slowed down to 20 s at +13C by moderate cooling because of the extraordinaryly high activation energy of the enzymatic reaction of the low temperature modification of the complete emzyme F1L  (see page: regulation of F1ATPase). This "cool trick" works with proteins, which show molecular motions during the reactions (motor proteins, allosteric proteins); in contrast the temperature effect on proteins which work by intramolecular electron transfer is much smaller.
The time resolved activation of the majority of molecules in the protein solution or crystal, i.e. the synchronization of the sample, requires the conversion of the free enzyme molecules E into the enzyme-substrate complex ES: According to the commonly accepted Michaelis-Menten theory of enzyme action
E + S <> ES <> (ES*) <> (EP*) <> EP <> E +  P    (equ.1)
the reaction E + S <> ES is rate limiting at low substrate concentration, while ES <> ES* is rate limiting under substrate saturation conditions (P is the product, (ES*) is the activated transition state of short life time). This synchronization can be acchieved by several strategies: 1) The system can be activated by a concentration jump of the substrate (ATP) by rapid mixing of enzyme and substrate stock solutions with a stopped-flow device, as shown below; 2) The system can be activated by a concentration jump of the substrate (ATP) by flash photolysis of a protected substrate-derivative, e.g. caged-ATP; 3) The system can be activated by conversion of an inactive protein modification into an active enzyme, e.g. byflash-photolysis / dissociation of a protein inhibitor, e.g. carbon monoxide CO from Cytochrome-oxidase or Myoglobin; 4) the complete system, an inactive mixture of protein and reactand, can be activated by a jump event, e.g. by a temperature jump of a cold-inactivated mixture. With F1ATPase from Micrococcus luteus the strategies 1, 2 and 4 were successfully tested in the MPSD group (see T20). Below the results with the simplest method are presented, the rapid mixing with a stopped-flow device.
During structure investigation with a high flux synchrotron (or later a FEL) the specific problems presented in Table1 occur. In the last 4 years we found the solutions in the table, which enabled us to use the full flux of the most brilliant monochromatic X-ray beamline existing, the ID2A beamline at ESRF, for our investigation of working proteins (F1ATPase, ATP-Synthase (and in collaboration with H. Heumanns group, MPI Martinsried, the caperones GroEL/ES). After first experiments and several improvements (1997/1998) the state-of-the-art experiments (1999/2000) in cooperation with T. Narayanan (ESRF) yielded a complete scattering profile at a flux of 2x1013 ph/s at sample (0.3x0.8mm focus, 12.5 keV photons) in 150 ms (i.e. one frame of a structural film of 110 images). This is about the same photon flux, that will be obtained during a microbunch of the planed pulsed free electron laser FEL at DESY, Hamburg, in 10 years (but the film will be 100,000 times faster). The stability of F1ATPase from Micrococcus luteus in an X-ray experiment with the full ID2A-flux is shown in Fig.6. The time resolved estimation of the radius of gyration, which is an estimate of the averaged molecule size, indicates that this enzyme survives the beam (radiation demage) in presence of a radiacal scavenger and in degased solution (oxygen -> O2minus*-radical !), which was cooled by a helium jet in our novel sample environments XBox2 and XBox4 (see S30, R7) for >30 s before fragmentation of a small sub-population. This is the time window for structureal biology with the working protein. The increase at the end (130 s) indicates the formation of a gas-bubble. The radiation tolerance is different for several proteins and followed the series:

F1ATPase / ATP-synthase (Micrococcus luteus) > GroEL/ES (E. coli) > Hemocyanin (Eurypelma californicum)   (about 50:5:1)

Table1: Problems in the investigation of molecular motions at high flux synchrotrons and some solutions.
Problem
Solutions available
Future solutions, e.g. for XFEL
sample heating by beam absorption helium jet cooling (see: sample environment in S30),
defocussing of beam (e.g. at ELETTRA-SAXS)
defocussing and re-focussing required at XFEL, pulsed bunch multiplexing
gas bubble formation under irradiation degasing of samples (15 Torr, 1h) Helium degasing of samples (as usual for HPLC solvents)
radiation demage use of 2D-detectors (catch any scattered photon),
radical scavengers (10% glycerol, trehalose),
continous replacement of sample by slow pump (see S30), or sample cell motion (motor, piezo drive)
radical scavengers, defocussing and re-focussing, and sample cell motion by a fast piezo drive (XFEL)
time resolved data estimation, interuptions 2D-gas detectors currently are limited to 5x1010 ph/s at sample (slow kinetics >> 10s),
CCD cameras (e.g. frelon-XRII) withstand high flux (>1014 ph/s at sample) but have reading gaps (100ms),
3rd generation synchrotron yield enough photon for a time resolution > 1ms in single shot experiments
integrative detectors (at an XFEL all scattered photons in a microbunch (107-108) occur in a few fs),
image plate with an analyzer crystal on a piezo-twister,
the time range 1ns - 1ms in single shot experiments is accessible with XFEL

.

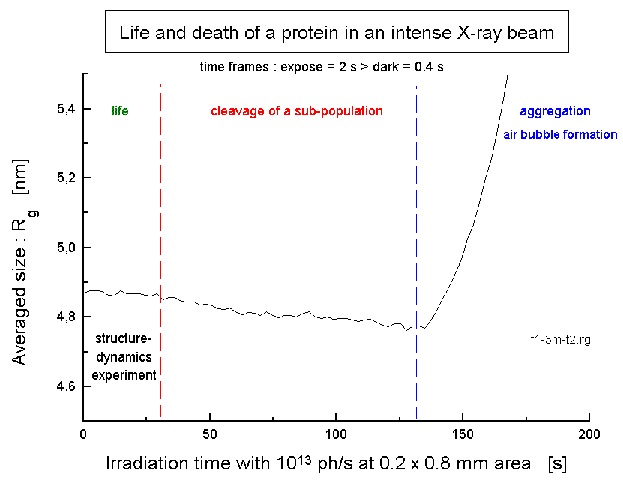

Fig.6: The F1ATPase from Micrococcus luteus (10 g/l, pH7.5; without substrate ATP) withstands the full flux at the high brillance beamline at ESRF (ID02A) of 2x1013 ph/s (in 0.2 x 0.8 mm2) in a degased soltution containing 10% (v/v) glycerol as radical scavenger. The increase after 130 s indicates the formation of a gas bubble.  The structural film of the working protein is obtained as a sequence of frames exposed for 300 to 150ms, which is the equivalent of the expected flux during one microbunch at the planed XFEL.

Size changes - radius of gyration, Rg

A preliminary study done at DESY, Hamburg, with addition of repetitive shots was published 1991 in FEBS Lett. 280, 179-182 (reference F14). Despite of repetition signal broadening, this showed an expansion burst in the middle of ATP hydrolysis cycle the F1ATPase from Micrococcus luteus qualitatively. Unfortunately the used A1 beamline (RFo (H.B. Stuhrmann), 5x10e9 ph/s in the 1mm-focus at 8 keV) became unstable after the DESY-DORIS synchrotron reconstruction and could no longer be used for our experiments.
First high resolution results obtained with single shot experiments of the native enzyme at the high flux synchrotron ESRF have been presented at the 10th European BioEnergetics Conference, June, 27th - July, 2nd, 1999, Gteborg, Sweden (EBEC short reports 10, 52 (1998)) and at the SAS99 conference, Brookhaven, N.Y., May 1999. 1999 the conditions were again improved by a factor of 15. The high X-ray intensity at the ID02A beamline (2x10e13 ph/s at 12.5 keV in the focus 0.3x0.8 mm) now allowed a more detailed insight in the reaction cycle, even with single shot experiments (150 ms exposure / image with a helium-jet cooled sample environment and an image intensified XRII-FRELON CCD camera).

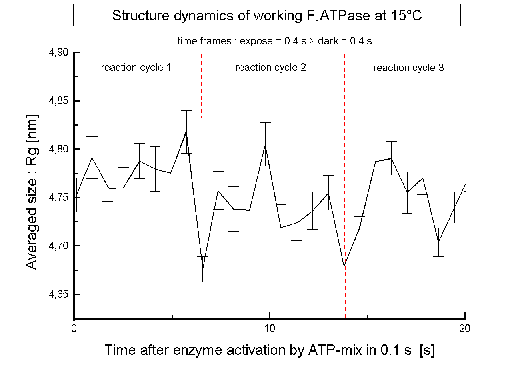

Fig.7: After activation and synchronization of the ATP-reaction cycle by a concentration jump of the substrate CaATP (c = 1 mM = 6 Km) the averaged size of F1ATPase (Rg) changes trasiently. The dashed lines indicate the time required for one ATP-cleavage/protein at the experiment temperature at 15C (7s).

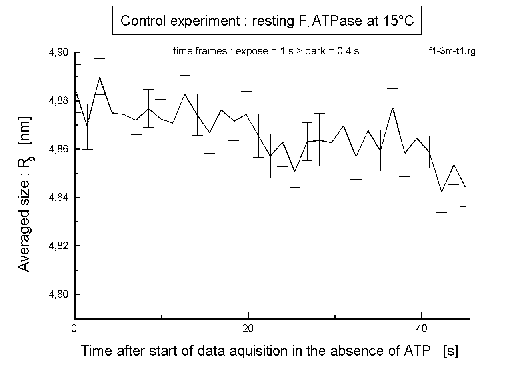

Fig.8: In the control experiment (with no ATP added) the averaged size of F1ATPase (Rg) doesn't depend on time.

Subsequent cycles - evidence of a supercycle

The estimation of the radius of gyration of working F1ATPase for a time longer than the duration of the enzymatic cycle tau was successful with an improved X-ray CCD camera at 20C. At this temperature the livetime of the working F1ATPase in the beam (> 30 s)  was long enough for the observation of the native structure during several ATP hydrolysis cycles. The result is shown in figure9 for a single shot and the addition of 6 repetitions: The third of three reaction cycles took 1/3 more time as compared to the first two cycles of 3 s duration. Then the noise increased.
The result is an evidence for a supercycle of three subcycles in the ATP hydrolysis mechanism of F1ATPase. As suggested by the cut through the catalytic head (Fig.2), this behaviour is probable because only one of three large subunit pairs in the F1ATPase complex is attached to an extra subunit - delta in Escherichia coli  but epsilon in Micrococcus luteus (see reference F8, F18, F20). Biochemists tried to prove this guess for years, e.g. by chemical cross-linking, but failed. According to our result this is to be expected, because the asymmetry in F1ATPase in not of permanent but of kinetic nature (dynamic).

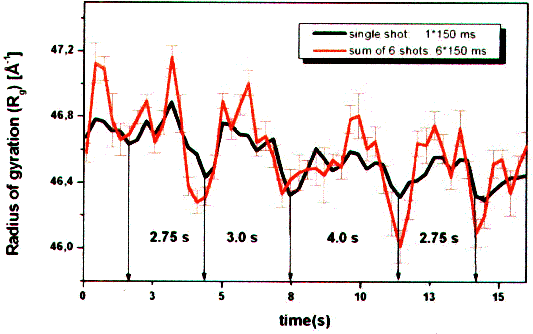

Fig. 9: The estimation of the average molecule size according to the radius of gyration Rg over several reaction cycles at 20C shows that the third of three ATP-hydrolysis cycles takes about 1/3 more time (4 s versus 3 s). This is an evidence for a supercycle of three subcycles and of a dynamic asymmetry in working F1ATPase (from T23).

Side maxima changes indicate subunit motion

The scattering profile of F1ATPase shows weak side maxima (intensity <= 1% of I(0) ). According to molecular modeling with our FVM cube method (reference F10) the first side maximum at q = 0.1 A-1 corresponds to the distance of the large subunits (alpha, beta) across the F1ATPase hollow sphere. The minimum before the first side maximum at q = 0.071 A-1 corresponds to the cleft between the hollow sphere and the central gamma-subunit therein. With an improved CCD camera we were able to detect the side maxima in time resolved small angle scattering of working F1ATPase. The result after subtraction of the isotropic buffer scattering is shown in Fig.10 (reference: ESRF newsletter 2000, submitted; T23). Without any further evaluation cyclic changes in the sidemaxima are visible. These correspond with motions of the large subunits and (independent) of the cleft inside the F1ATPase hollow sphere. The results fit the Rg changes as well. In controll experiments with buffer instead of ATP solution added no changes were detectable. The experiment was reproduced in independent experiment series with different enzyme preparations and in different operational modes of the ESRF synchrotron.

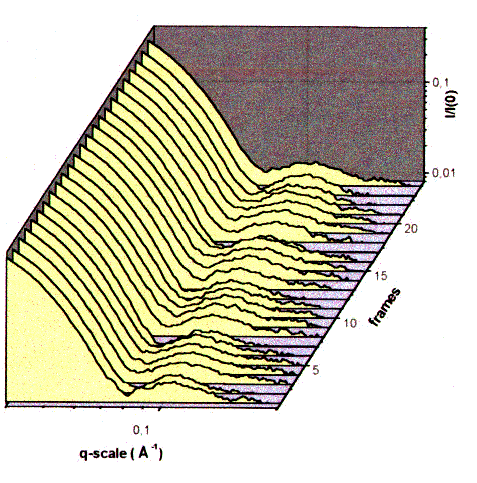

Fig.10: The side maxima in the time resolved small angle scattering of working F1ATPase at 20C indicate subunit motions in the F1ATPase head directly. The subunit distance ds accross the F1-head corresponds to ds = 2 pi / qs., where qs is the position of the side maximum (momentum transfer). During the frame sequence time of 600 ms the images were taken in the first 300 ms (from T23).

Conclution of results

1) In presence of protective radical scavenger the degassed enzyme solution withstands the intense X-ray beam (25 mW) in our novel helium jet cooled sample environments at least 1 minute (time window for structural biology).
2) In the control experiments (without ATP addition) no changes are observed. Thus experimental artefacts can be excluded.
3) Until now we observed with working F1ATPase during one ATP-hydrolysis cycle a series of three short expansion pulses (radius of gyration bursts), which is terminated by a shrink pulse.
4) The weak side maxima in the scattering profile change transiently. This indicates motions of the large subunits directly ( d = 2 pi/ q(1st sidemax.) = subunit distance !).
5)  However,  the series repeats at least three times.
6) The time for the third reaction cycle is 1/3 longer (at 20C) as for the first two cycles (3 s). This indicates a dynamic asymmetry of F1ATPase.
7) The structural dynamics depends on temperature parallel to the enzymatic turnover rate.
8) With complete ATP-synthase an expansion is visible qualitatively (more difficult because of lower protein concentration and the elongated shape of the molecule).

Experimental conditions:
- F1ATPase: c= 5 mg/ml + 1 mM ATP + 5 mM CaCl2, pH8, 10% glycerol (protective radical scavenger), T=12-20C
- The enzyme is at 1 mM ATP saturated for multisite catalysis (Km = 150 m with CaATP 5:1).
- The sample is cooled by a helium jet during the experiment (avoids beam heating; at ESRF-ID2A 50% of the beam power (25 mW at 2x1013ph/s, 12 keV) is absorbed).
- The speed of the reaction is slowed down by cooling from 4 ms (37C) to 5-20 s using of the extraordinary high activation energy of the catalysis by the low temperature modification of the inhibitor protein associated F1ATPase F1L from  Micrococcus luteus (see: Regulation ATP-synthase).

Interpretation

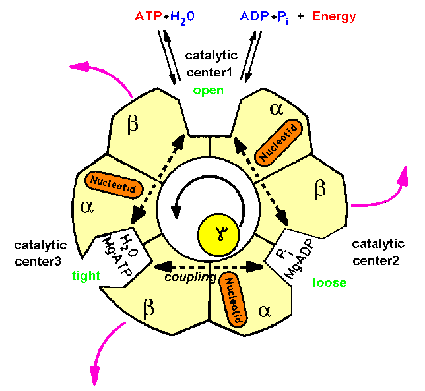

Fig.11: The changes in the average size (Rg) and the dislocations of the side maxima (subunit distances) can be interpreted by molecular motions of domains (subunit-parts) inside the hollow F1ATPase complex  (from T20, modified).

-  The large structural changes of working F1ATPase and ATP-synthase are due to subunit or domain movements.
-  Molecular modelling showed that the motion can not be explained by the rotation of the central gamma-subunit. Obviously the large subunits (alpha, beta) or significant parts of them (lower domains) are displaced radially.
-  The molecular motion is a sudden move rather than a diffusive creeping.
-  The kinetics (fast events after a long time) can be explained by an avalance model, i.e.a sudden transition from a metastable state.
- The long time observation yields an evidence of a supercycle of 3 subcycles (ATP reactions) and a kinetic asymmetry.
-  The results suggest a hierarchy of molecular motions in ATP-synthase:

F0-movement <> gamma-subunit rotation <> F1-subunit motion <> nucleotide reaction (ATP)

Fig.12:The molecular motions in working ATP-synthase occur in a hierarchical manner: During the ATP-synthesis the sequence passes from left to right, whereas upon ATP hydrolysis  the events occur from right to left. In F1ATPase the sequence stops at the gamma-subunit rotation.

Current work:
- molecular modeling with an improved version of our FVM cube method (F10), capable of simulating molecular motions.
- study of the short life time conformations (expanded, shrinked) and transitions by stopped-flow / temperature-jump double experiments (cold trap) with our new sample environment SBox4, associated with 3 thermostats (see also our technology page).
